Cutting Tool Service
Expert analysis, sharpening, and recoating for every gear cutter you run.
We service hobs, milling cutters, and shaper cutters of every type, returning each one to original quality and back to your floor in three to five days.
Precision gear tool service.
We service every type of gear manufacturing tool, with hob stocking programs and dedicated application engineering behind every tool we design and deliver.
Sharpening
$50/tool
Premium, efficient sharpening of straight-gash hobs and spur shaper cutters
HSS or carbide
Up to 0.005″ stock removal
Expert inspection and quality control for every type of tool.
3-5 day turnaround.
Re-Coat
$35/tool
Expert premium recoating and stripping by Oerlikon Balzers or Eifeler Coatings
HSS or carbide
TiN, AlCrN, TiAlN, and other advanced coatings for improved tool life
3-5 day turnaround.
Full Analysis
$50/tool
Full analytical inspection on dedicated CNC gear tool measuring machine
Graphical certification of gash lead, tooth rake, gash spacing, tooth spacing, and more
AGMA and DIN certification
+$50 setup charge for new tools
**Tools are sharpened in 3–5 days with rush options available. We offer pickup and hand-delivery within 100 miles of South Elgin, IL (e.g. Chicagoland, Milwaukee, Rockford). Discounts are available for large volume orders. Large or unique tools are subject to additional charges.
Sharpening Versatility
We sharpen nearly any gear cutting tool, large or small, bore- or shank-type, HSS or carbide, straight- or helical-gash, including hobs, shaper cutters, and milling cutters.
In-house CMM Inspection
A PGM 165 Gear Measurement System runs CNC analytical inspection on every tool, confirming it returns to original quality after sharpening.
Quality grinding. Premium components.

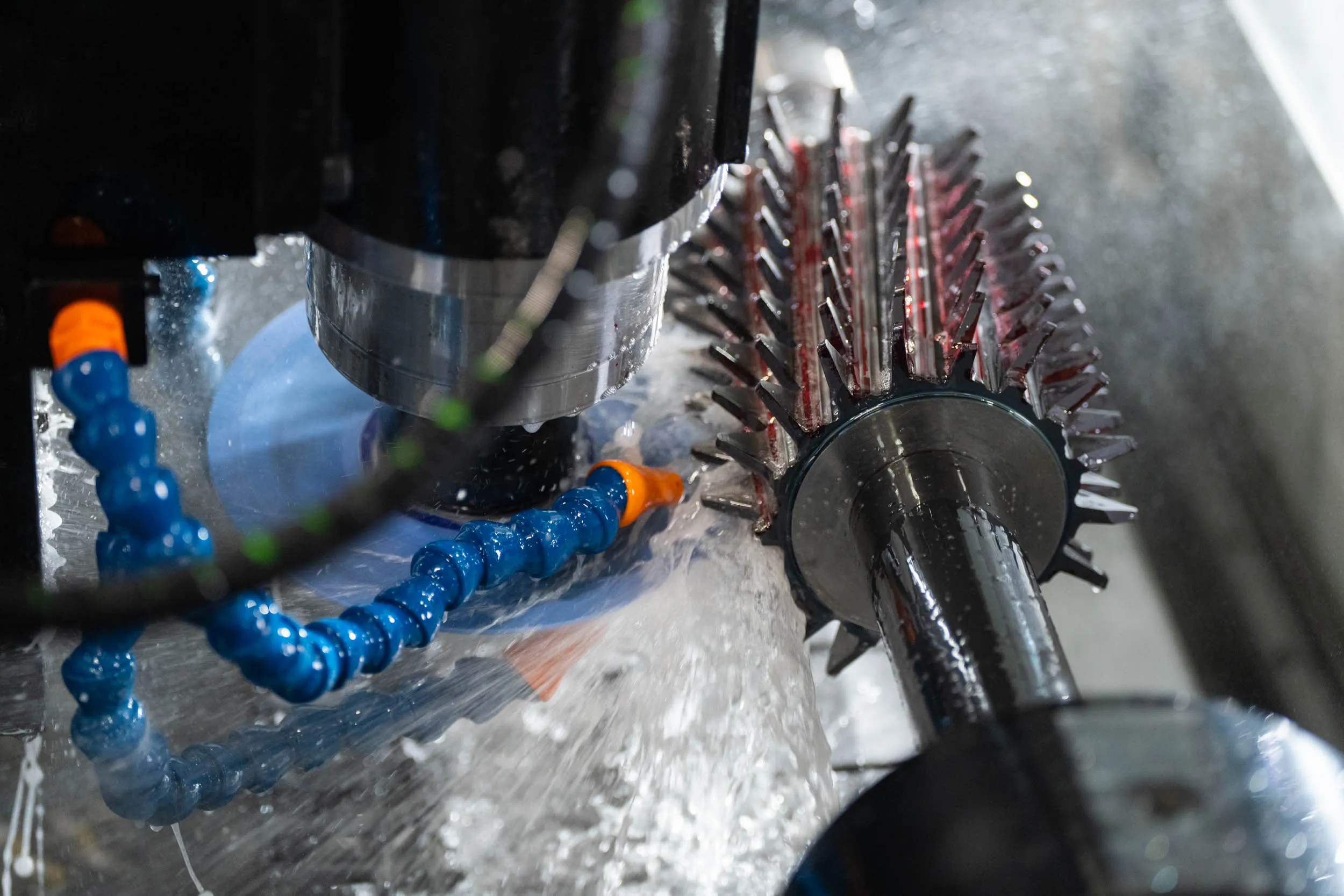

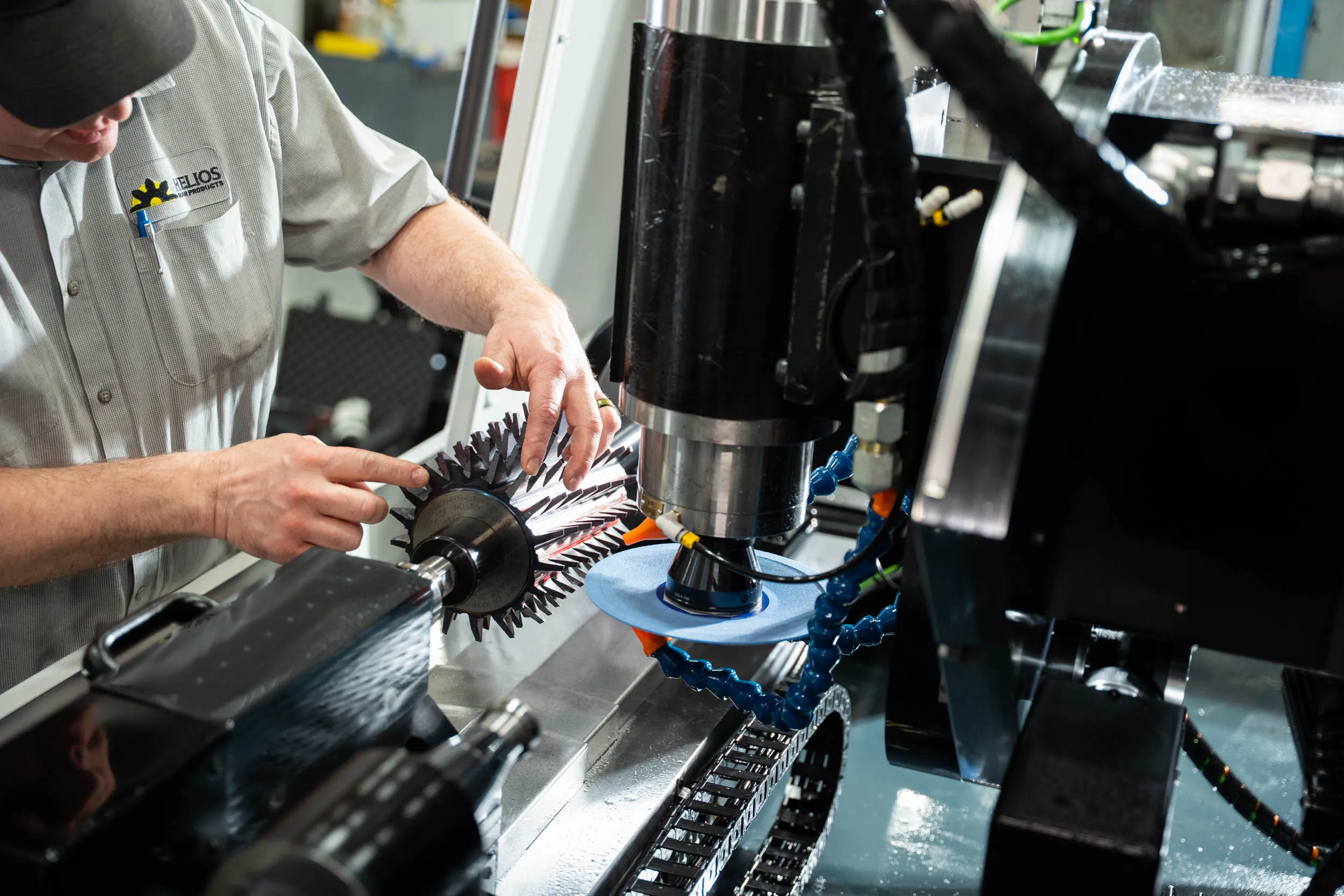

We sharpen every tool on KFS CNC gear tool sharpening machines, built for rigidity and precise, repeatable grinding.
Superior tool life by design.
Helios gear cutting tools come in high speed steel, MC90, and carbide to match the part and the cut. Our fine-pitch carbide tools are ground to hold tooth profile accuracy nearly the full length of the tooth, without altering flute widths, so each one cuts more parts and resharpens more times than a typical tool.
- Sharpening up to AGMA AAA quality
- Wet grinding on free-cutting CBN and diamond wheels, preventing heat micro cracking for an excellent surface finish
- CNC crown dressing of vitrified wheels for helical gash hobs, to 35 degrees of gash lead on straight, helical, or shank-type tools
- Capacity to 10.000 in diameter, 12.000 in length, and shaper cutters to 8.000 in diameter
Superior tool life by coatings.
The right coating extends tool life further, adding wear resistance for progressively tougher cuts. We apply premium gear tool coatings from two of the industry's leading sources, matched to your material and application.
- Oerlikon Balzers Balinit® TiN, general-purpose wear resistance
- Oerlikon Balzers Balinit® TiAlN, known as Futura Nano
- Oerlikon Balzers Balinit® AlCrN, known as Alcrona
- Oerlikon Balzers Balinit® Altensa, the latest generation for aggressive cutting
- Voestalpine Eifeler AlTiCrN, known as Exxtral Silver
- Voestalpine Eifeler AlCrTiN, known as Tigral
- Voestalpine Eifeler TiAlCN, known as Variantic
Featured Tools
Shaper Cutters
Rack Milling Cutters
Power Skiving Cutters
Your precision manufacturing support team, ready when you need us.
Our engineering team is on-call during CST business hours to keep your operations running smoothly.
