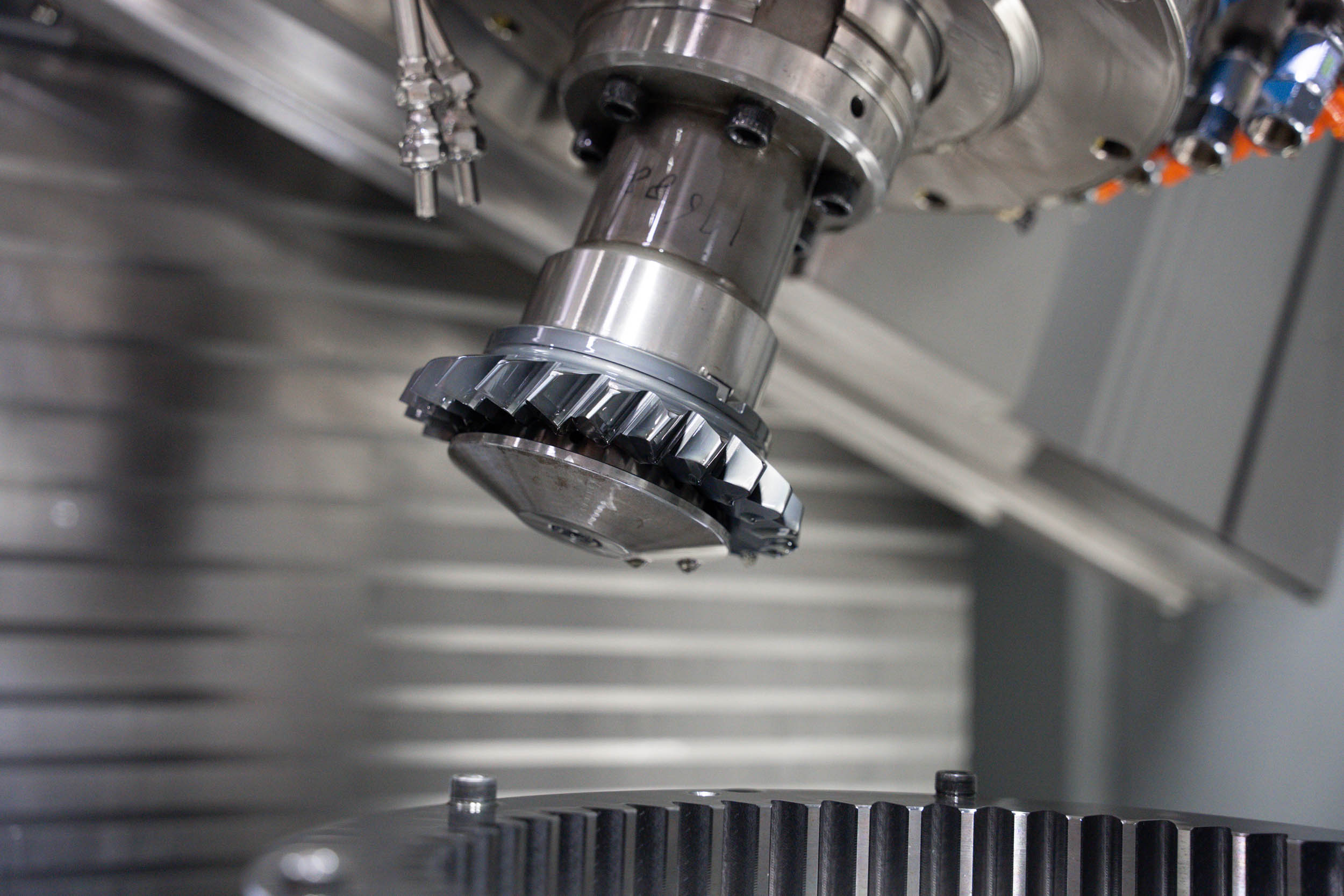

Power Skiving Cutters
Skiving tools for standard and custom profiles:
Production of internal and external spur and helical gears.
Offered in bore- (disc) or shank-types.
Capabilities to meet AGMA AAA specifications.
Pitch: 0.15 - 6 mn [170 - 5 DP]
OD: 7.5 - 250 mm
Helix Angle: +/-35°
Length (Shank Type): 75 - 180mm
All industry-standard materials:
Including premium HSS (e.g. S390, ASP2052) and premium carbide grades.
Increased productivity and tool life result in low costs compared to standard high-speed steel.
Optional tool stocking program available for immediate deliveries.
Longer tool life, by design and by coating.
Helios gear cutting tools come in high-speed steel, MC90, and carbide to match the part and the cut. Our fine-pitch carbide tools are ground to hold tooth profile accuracy nearly the full length of the tooth, without altering flute widths, so each one cuts more parts, resharpens more times, and lasts longer than typical carbide tools.
Coatings extend tool life further. The Oerlikon Balzers Balinit® line includes TiN, TiAlN, AlCrN, and the latest-generation Altensa, each adding wear resistance for tougher cuts. AlTiCrN, AlCrTiN, and TiAlCN from Voestalpine Eifeler Coatings are also available.
Access our full catalog.
