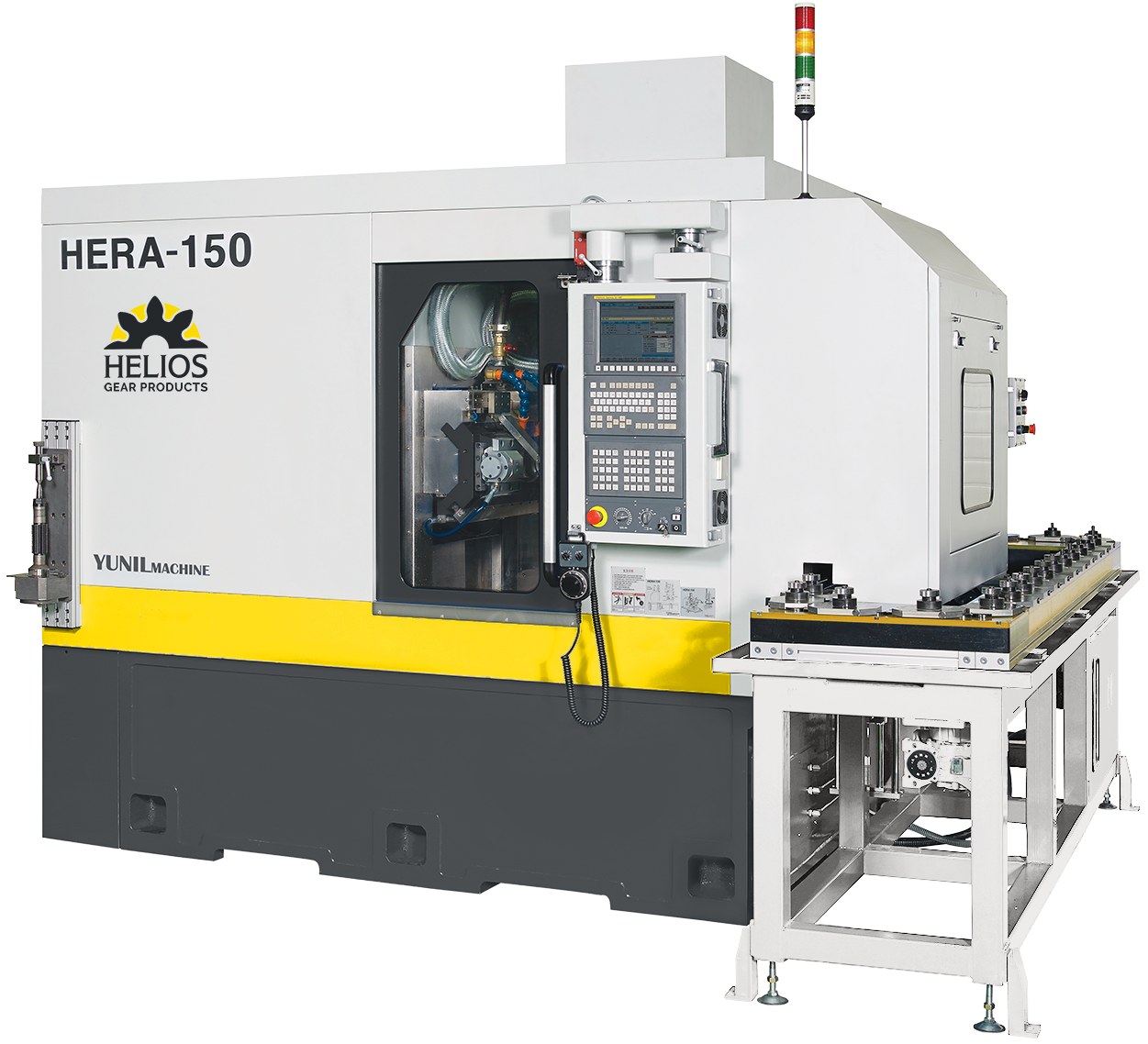

Helios Hera 150

High-speed direct-drive hob head with CNC shifting:
Automatic retraction of X-axis during power failure, preventing hob damage.

‍

Direct drive torque motor for the work spindle:
Driven via FANUC® torque motor.

‍

Flexible standard dialogue program offering:
One or two gears on a single workpiece.
Radial, axial, climb, and/or conventional hobbing on single- or two-cut cycle.
Crowning (lead modification) and deburring using two equal hobs.
Automatic shifting over broken hob section.
Optional re-hobbing (skiving).

‍

CNC by FANUC® 0i-MF with 6 axes (optional 7):
Tangential position of hob head (shifting) by CNC.

‍

Quality components and construction:
Precision, repeatability, and control with linear scales on the X-axis.
Cast iron machine base for optimum stability and damping.
