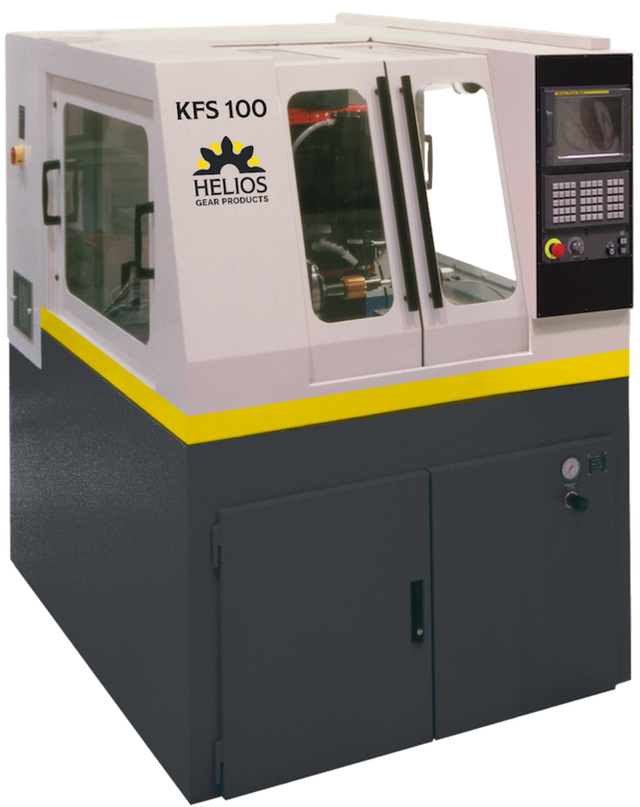

KFS 100

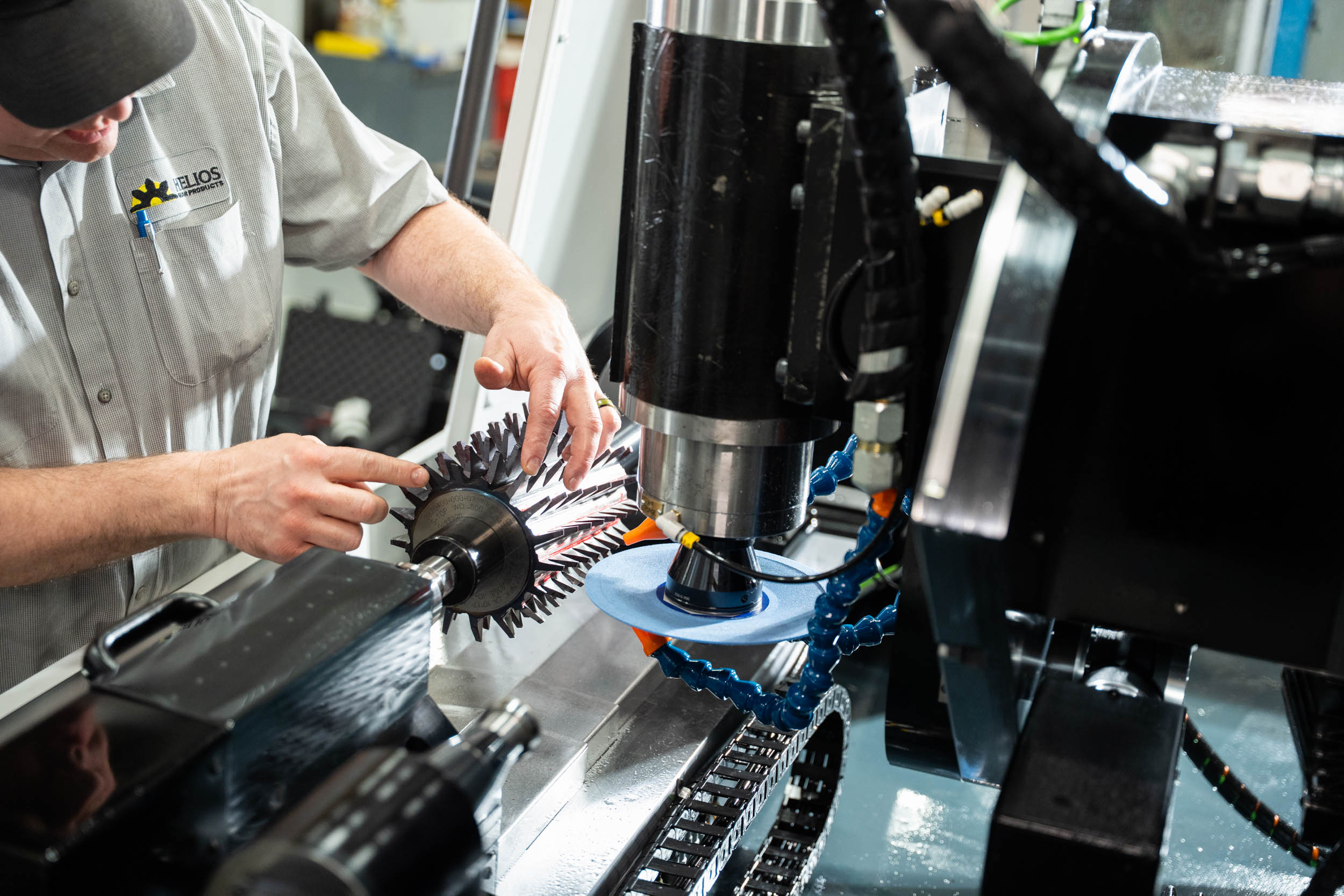

Equipped for heavy-duty sharpening of high-speed steel (HSS) and carbide tools of both bore- and shank-type including straight- and helical-gash hobs, milling cutters, and shaper cutters.

Heavy-duty sharpening of HSS and carbide tools:
Capabilities include bore- and shank-type tools, straight- and helical-gash hobs, milling cutters, and shaper cutters.
Designed for use of vitrified, CBN, or diamond abrasive (resin-bonded or plated).
Optional spur and helical shaper cutter sharpening (KFS 100-SS) and helical- and spiral-gash hob sharpening (KFS 100-S).

Capabilities to meet AGMA AAA specifications.

Coolant filtration system integrated into the machine bed to provide a 40% smaller footprint.

Precision, repeatability, and control with pre-loaded linear guideways.

Ergonomic and intuitive considerations for operator accessibility:
Easy-to-use software with conversational programming and storage of cutter data.
4-axis FANUC CNC for assisted setup while maximizing accuracy and repeatability.
Compact FANUC CNC panel with touch-screen color display that stows into machine for safety and footprint optimization.
Pneumatic tailstock provides positive clamping pressure while grinding.
Accessible machine spindles for easy setup.
Maintenance ease with single-piece design for access to all machine systems.
