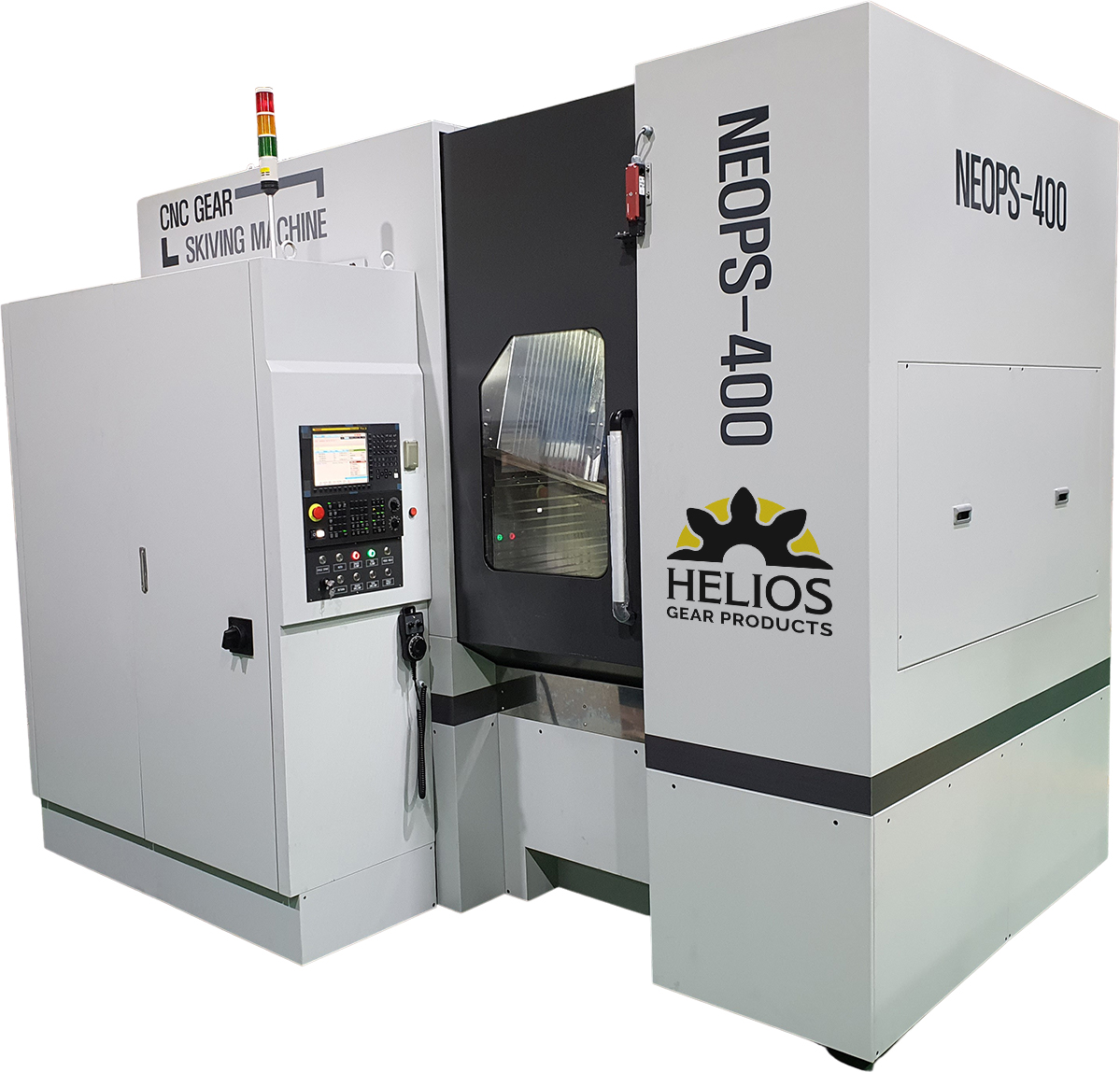

NEOPS 400
CNC Power Skiving Machine
4.23 DP
Max Pitch Rating
6,000
RPM Skiving Speed
CNC Axes
CNC Axes

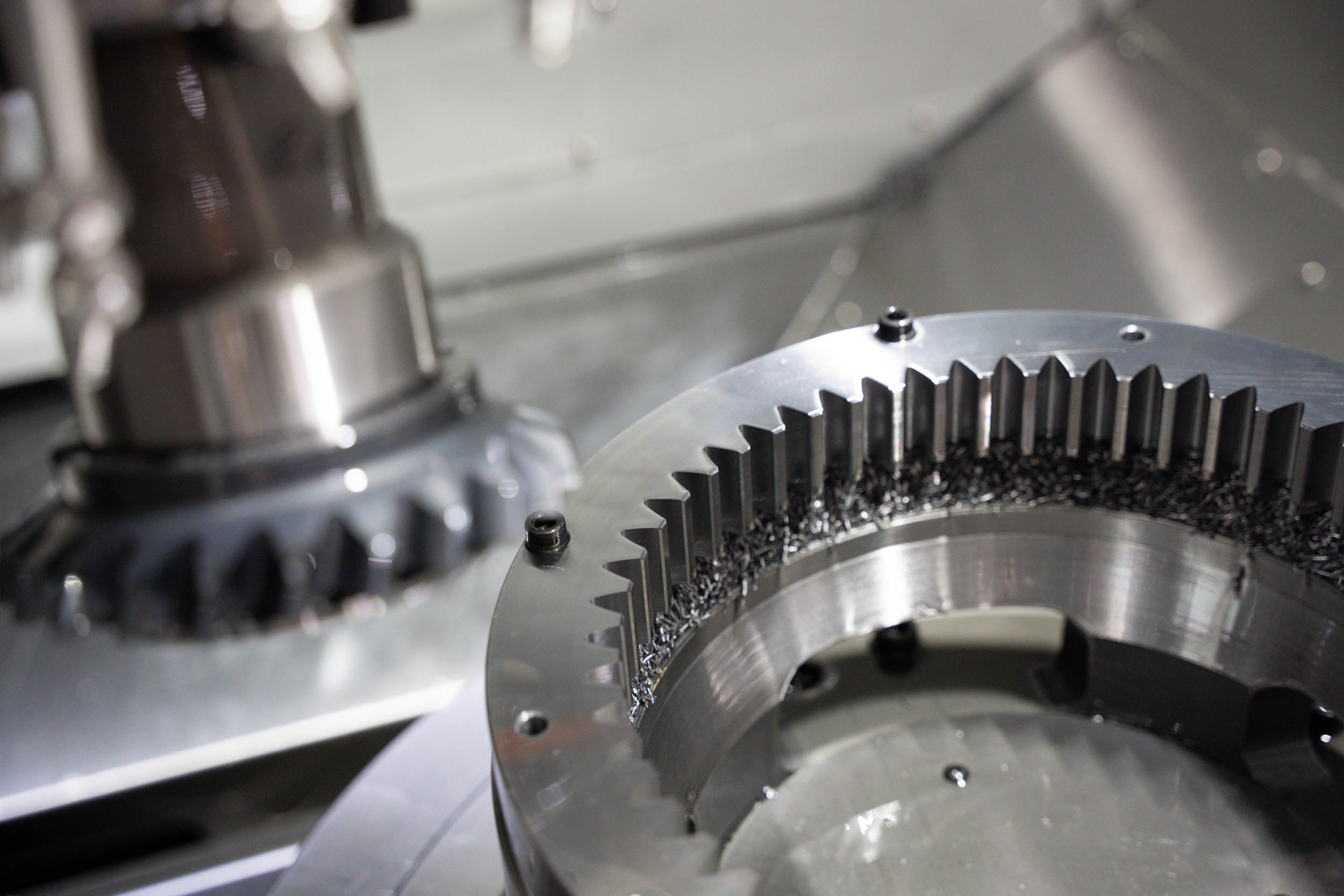

Power skiving machine for the production of internal and external spur or helical gears.
Heavy duty skiving head:
Driven via FANUC direct-drive torque motor.
CNC by FANUC 0i-MF with 6 axes.
Optional automatic tool changer.
Optional automatic loading.
Quality components and construction:
Cast iron machine base for optimum stability and damping of vibrations.
Precision, repeatability, and control with linear scales on the X-, Y-, and Z-axes.
Automatic lubrication system with impulse lubrication for machine rails.
Bolstering your quality and productivity.
The NEOPS 400 CNC power skiving machine combines advanced technology, precision components, and economic pricing to enable profitable production of high-quality components and gear profiles.
NEOPS 400
Technical Specifications
Metric / Imperial
Max Pitch Rating
6.00 mn / 4.23 DP
Max Workpiece Diameter
400 mm / 15.750 in
Max Workpiece Diameter (auto-load)
420 mm / 16.535 in
Max Workpiece Length
320 mm / 12.598 in
Minimum Axial Position
190 mm / 7.480 in
Maximum Axial Position
570 mm / 22.441 in
Min Axial Position
190 mm / 7.480 in
Max Axial Position
570 mm / 22.441 in
Cutter Head Radial Travel
400 mm / 15.748 in
Min. Radial Position of Cutter Head
6.00 mn / 4.23 DP
Max. Radial Position of Cutter Head
50 mm / 1.968 in
Max. Work Spindle Speed
3,000 rpm
Max. Spindle Speed
6,000 rpm
Max. Cutter Width
200 mm / 7.874 in
Max. Cutter Shift
500 mm / 19.685 in
Width
3,400 mm / 133.86 in
Depth
4,500 mm / 177.17 in
Height
3,550 mm / 139.76 in
Electrical Connection
220V, 3 phase, 60 Hz
