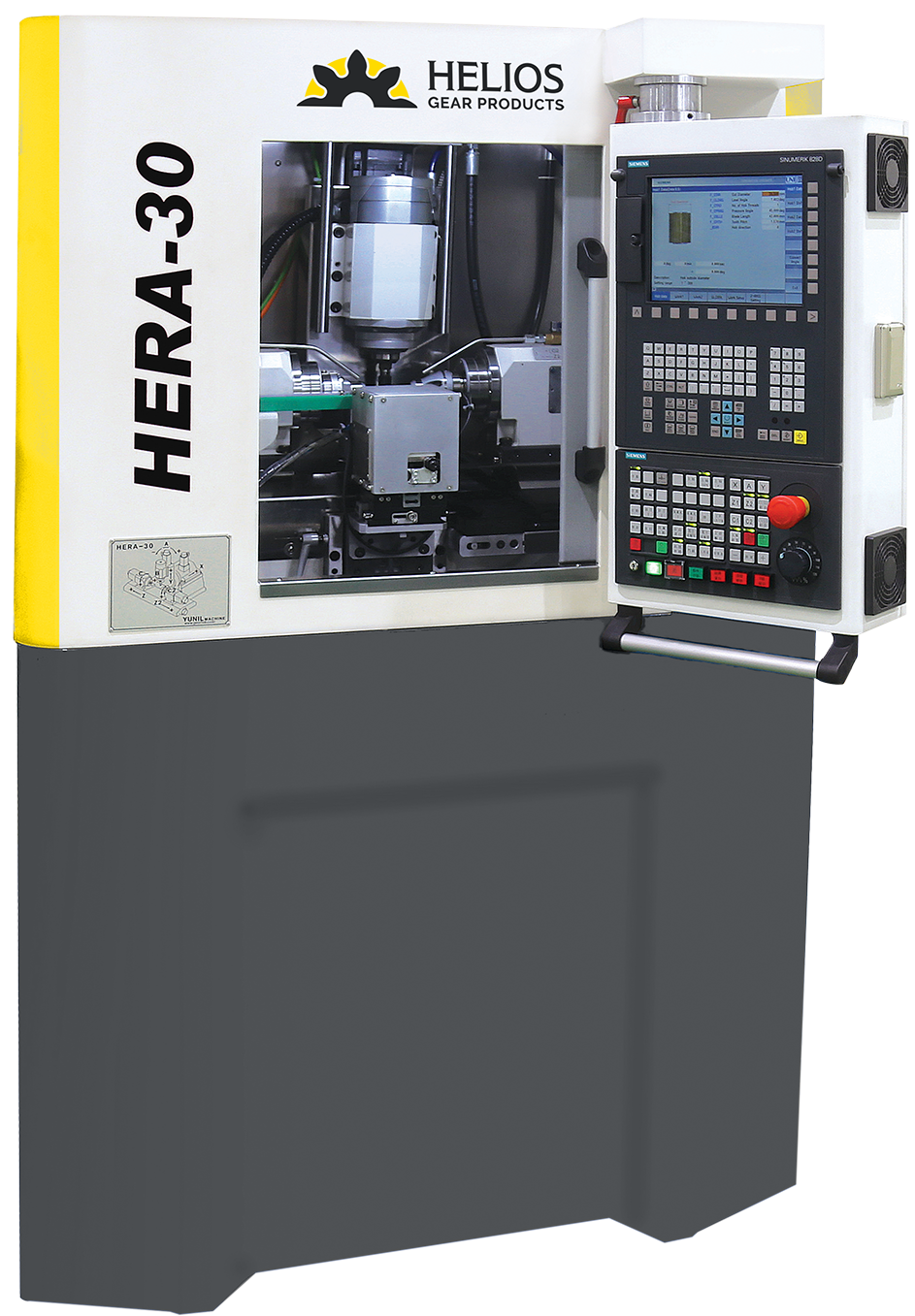

Helios Hera 30

CNC Gear Hobbing Machine

20.3 DP

Max Pitch Rating

10,000

RPM Hob Speed

CNC Axes

High-speed direct-drive hob head with CNC shifting:
Automatic retraction of X-axis during power failure, preventing hob damage.

‍

Direct drive torque motor for the headstock, tailstock, and hob head:
Matching driven work spindles.

‍

Flexible standard dialogue program offering:
One or two gears on a single workpiece.
Radial, axial, climb, and/or conventional hobbing on single- or two-cut cycle.
Crowning (lead modification) and deburring using two equal hobs.
Automatic shifting over broken hob section.
Optional re-hobbing (skiving).

‍

CNC by SIEMENS® 828D with 8 axes (optional 8 with gantry automation):
Tangential position of hob head (shifting) by CNC.

‍

Miter gear (straight bevel gear) cutting:
Index milling and Conikron generating for modules ≤ 0.5 m_n, 50.8 DP.

‍

Quality components and construction:
Precision, repeatability, and control with Heidenhain® linear scales on the X-axis.

Start RFQ Download Spec

Bolstering your quality and productivity.

The Hera 30 CNC gear hobbing machine combines advanced technology, precision components, and economic pricing to enable profitable production of high-quality spur gears, helical gears, straight bevel gears, and other hobbed profiles.
