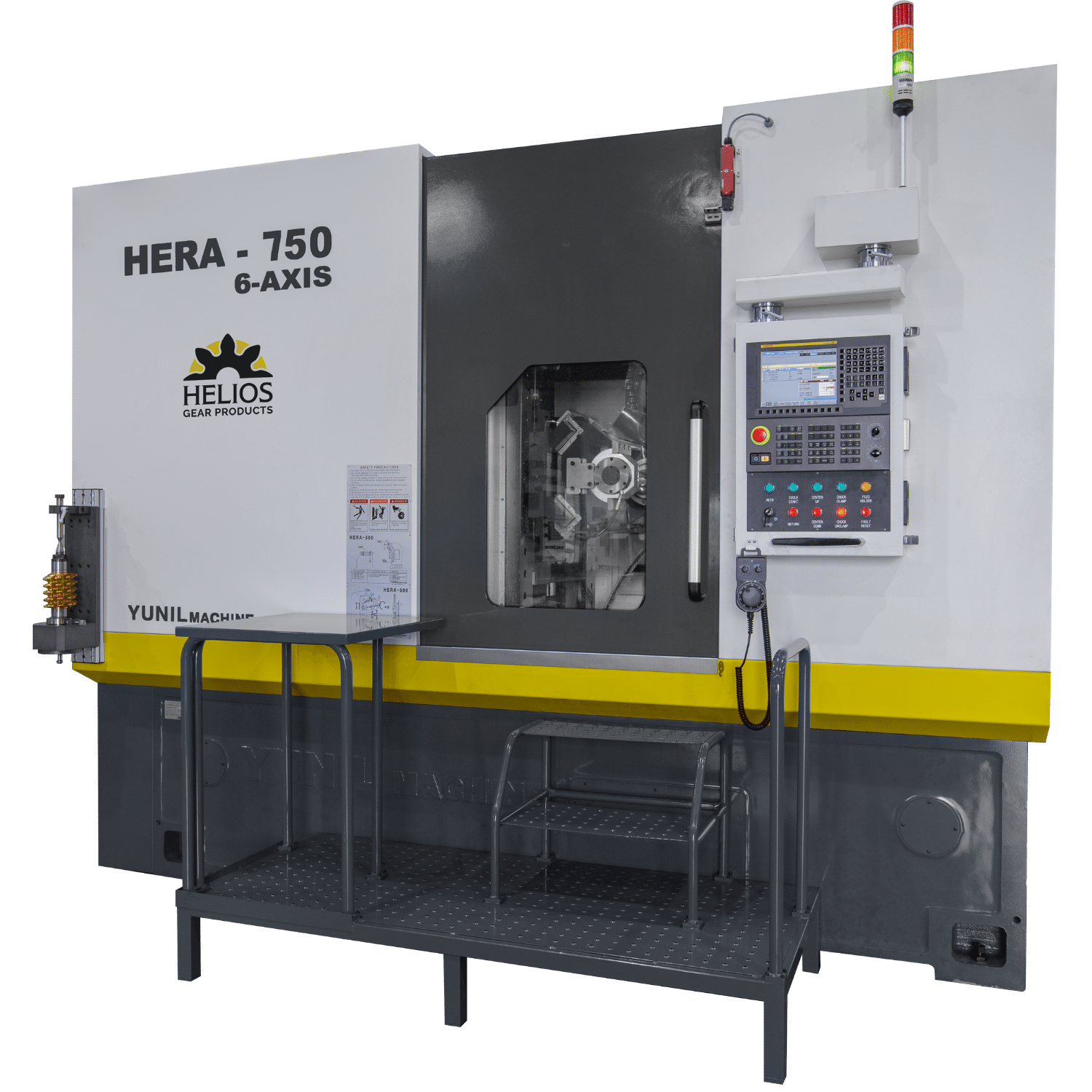

Helios Hera 750
CNC Gear Hobbing Machine
1.6 DP
Max Pitch Rating
30.7"
Max Part Diameter
CNC Axes
CNC Axes
High-speed direct-drive hob head with CNC shifting:
Automatic retraction of X-axis during power failure, preventing hob damage.
Direct drive torque motor for the work spindle.
Flexible standard dialogue program offering:
One or two gears on a single workpiece.
Radial, axial, climb, and/or conventional hobbing on single- or two-cut cycle.
Crowning (lead modification) and deburring using two equal hobs.
Automatic shifting over broken hob section.
CNC by FANUC® 0i-MF with 6 axes (optional 7):
Tangential position of hob head (shifting) by CNC.
Quality components and construction:
Precision, repeatability, and control with linear scales on the X-axis.
Cast iron machine base for optimum stability and damping.
Bolstering your quality and productivity.
The Hera 750 vertical CNC gear hobbing machine combines advanced technology, precision components, and economic pricing to enable profitable production of high-quality spur gears, helical gears, worm gears, and other hobbed profiles.
Helios Hera 750
Technical Specifications
Metric / Imperial
Max Pitch Rating
16.00 mn / 1.6 DP
Max Workpiece Diameter
780 mm / 30.71 in
Minimum Axial Position
230 mm / 9.06 in
Maximum Axial Position
710 mm / 27.95 in
Min Axial Position
230 mm / 9.06 in
Max Axial Position
710 mm / 27.95 in
Cutter Head Radial Travel
550 mm / 21.65 in
Min. Radial Position of Cutter Head
16.00 mn / 1.6 DP
Max. Radial Position of Cutter Head
630 mm / 24.80 in
Total Tailstock Travel
600 mm / 23.62 in
Min. Tailstock Position
400 mm / 15.75 in
Max. Tailstock Position
1,000 mm / 39.37 in
Max. Work Spindle Speed
50 rpm
Max. Spindle Speed
450 rpm
Max. Hob Diameter
300 mm / 11.81 in
Max. Cutter Width
300 mm / 11.81 in
Max. Cutter Shift
280 mm / 11.02 in
Width
4,500 mm / 177.17 in
Depth
3,000 mm / 118.11 in
Height
3,200 mm / 125.98 in
Weight
20,000 kg / 44,093 lb
Total Connected Load
95 kVA
Electrical Connection
220V, 3 phase, 60 Hz
