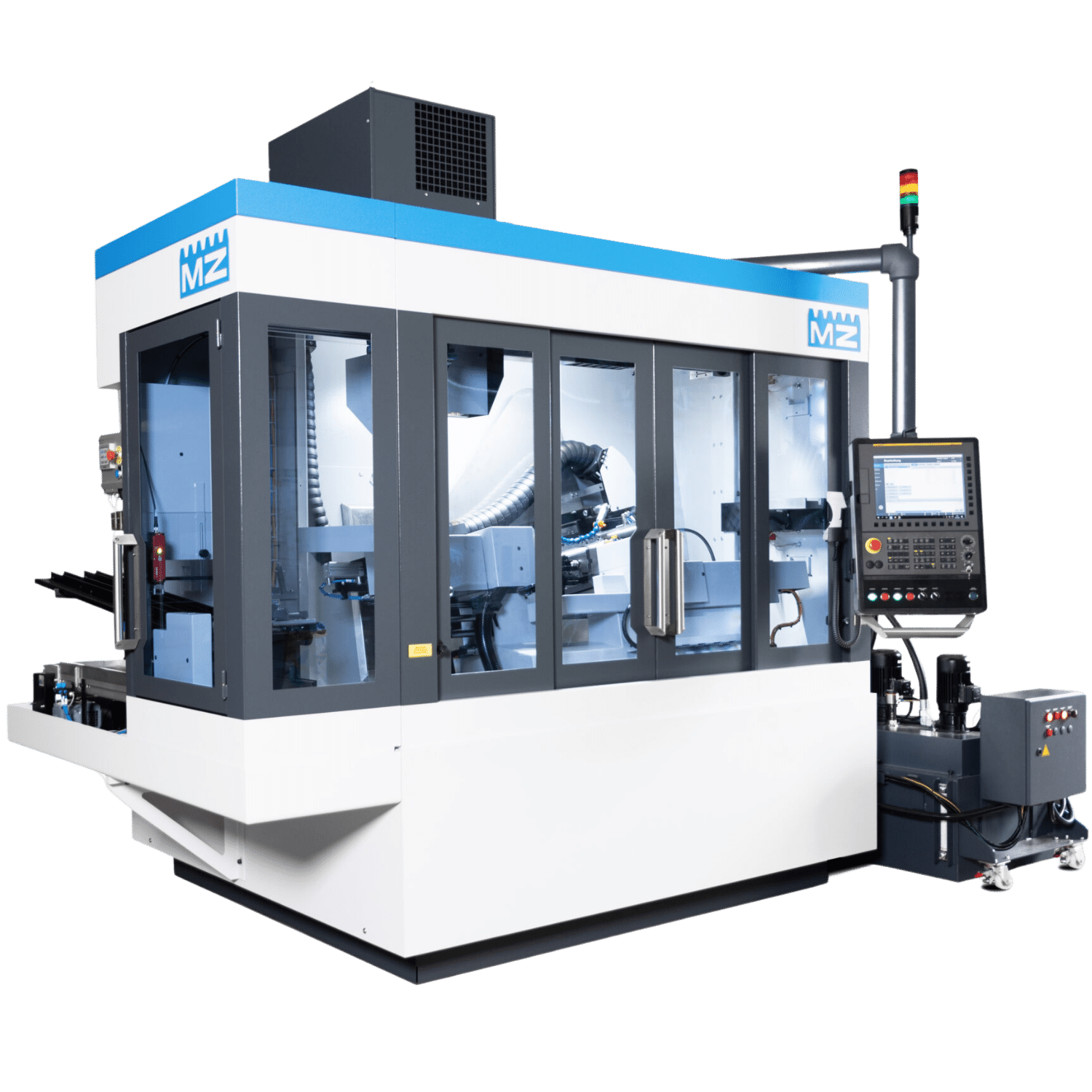

MZ 150

Hobbing and worm milling machine for the production of gears, worm gears, straight-toothed bevel gears, worms, and threads. Suitable for large and small production runs.

‍Machine mounted on a solid cast iron base, inclined to the rear by 15°. Workpiece spindle can be equipped with W25/W20 collets, retractable arbors, or customer-specific workholding.
CNC-tailstock clamping pressure up to 3,000 N, torque controlled. Below 500 N, clamping pressure is generated by spring load.
CNC-shift axis integrated in the hob head with 160 mm travel distance. Swivel angle on the hobbing and milling spindle is programmable, with a range of +45° to -127°.‍

‍

Technical Features:
Solid cast iron machine base with steel subframe.
Improved outlet for chips and coolant.
Swivel angle hob head: gear hobbing +45°, worm milling +45° to -37°.
Hob shift 160 mm.
Clamping systems: center, collet W25/W20, retractable arbor.
Deburring unit.
Automatic central lubrication.

‍

Options:
Synchronous axis drive of tailstock spindle (hobbing), removable.
Workpiece positioning by dynamic pressure sensor.
Customer-specific loading and unloading system.
