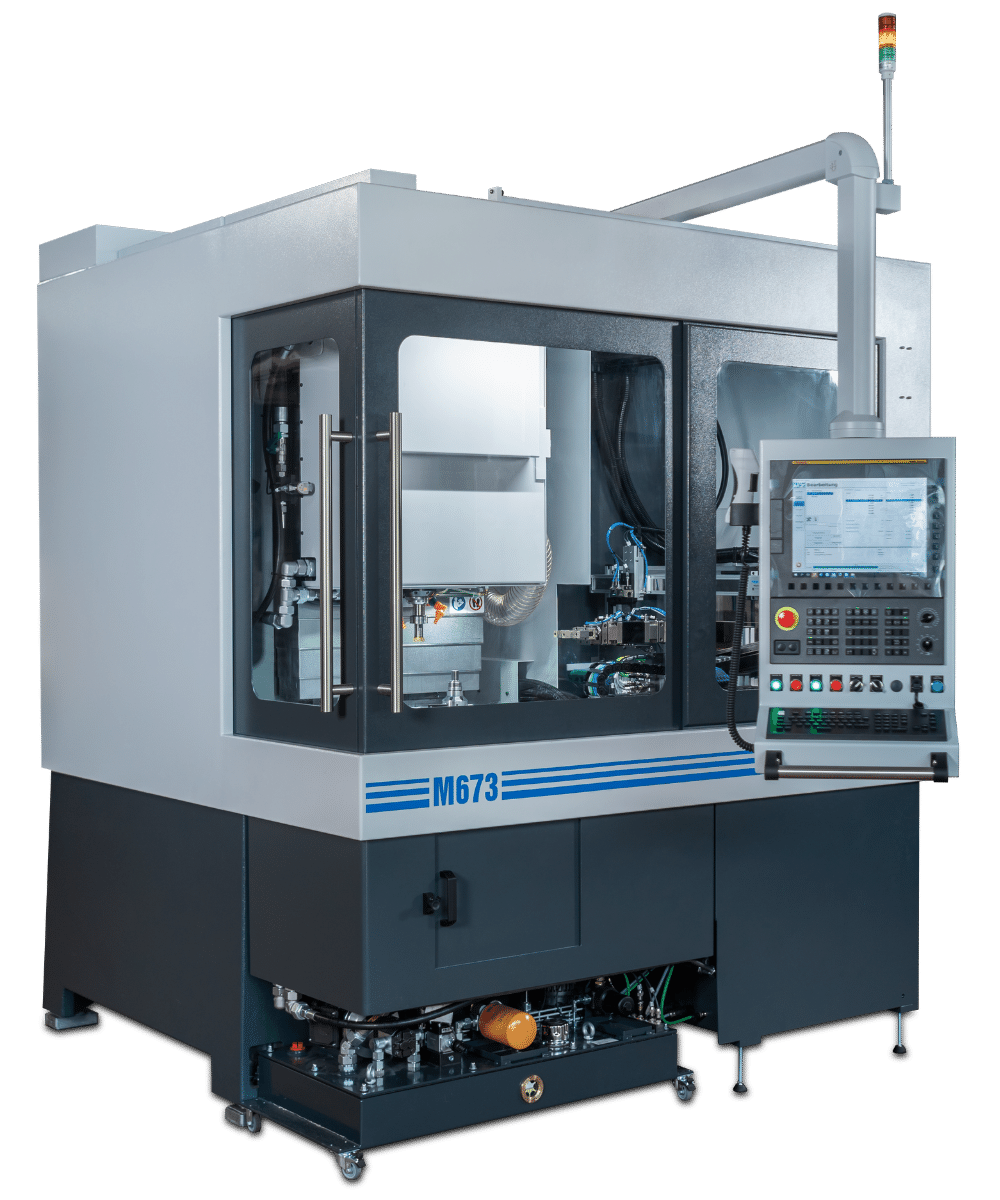

M673
CNC Gear Shaping Machine
20.3 DP
Max Pitch Rating
3.15"
Max Gear Diameter
CNC Axes
CNC Axes

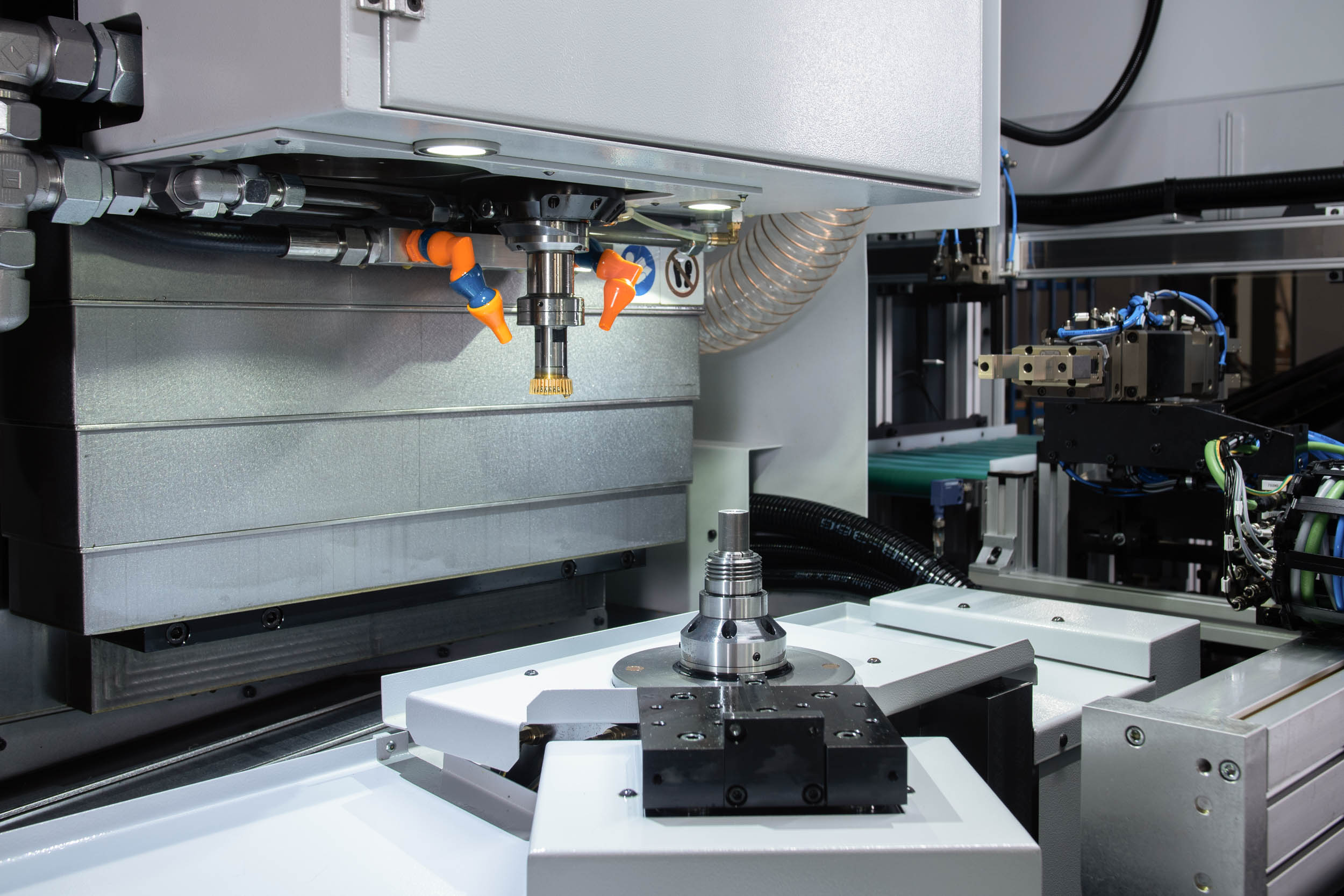

High-speed CNC shaping machine for universal shaping of internal and external gears and other tooth profiles.
High-speed CNC shaping:
2,000 strokes per minute.
Up to seven CNC axes.
Flexible automation system with options.
Capable workpiece clamping system.
Effective tailstock with optimized clearance.
Versatile shaper cutters:
Disc type.
Bell type.
Shank type.
Flexible automation systems:
Linear loader.
Robotic loader.
Various magazine systems.
Bolstering your quality and productivity.
The M673 gear shaping machine from Monnier + Zahner offers universal shaping for the machining of internal and external gears and other tooth profiles that can be manufactured by the shaping process.
M673
Technical Specifications
Metric / Imperial
Max Pitch Rating
1.25 mn / 20 DP
Max Workpiece Diameter
80 mm / 3.15 in
Max Workpiece Length
120 mm / 4.72 in
Cutter Head Radial Travel
220 mm / 8.61 in
Min. Radial Position of Cutter Head
1.25 mn / 20 DP
Max. Radial Position of Cutter Head
176 mm / 6.93 in
Total Tailstock Travel
195 mm / 7.67 in
Min. Tailstock Position
57 mm / 2.24 in
Max. Tailstock Position
252 mm / 9.92 in
Max. Work Spindle Speed
300 rpm
Max. Hob Diameter
100 mm / 3.94 in
Swivel Range
Width
3,100 mm / 122 in
Depth
2,400 mm / 95 in
Height
3,000 mm / 118 in
Weight
9,000 kg / 19,842 lb
Electrical Connection
220V, 3 phase, 60 Hz
