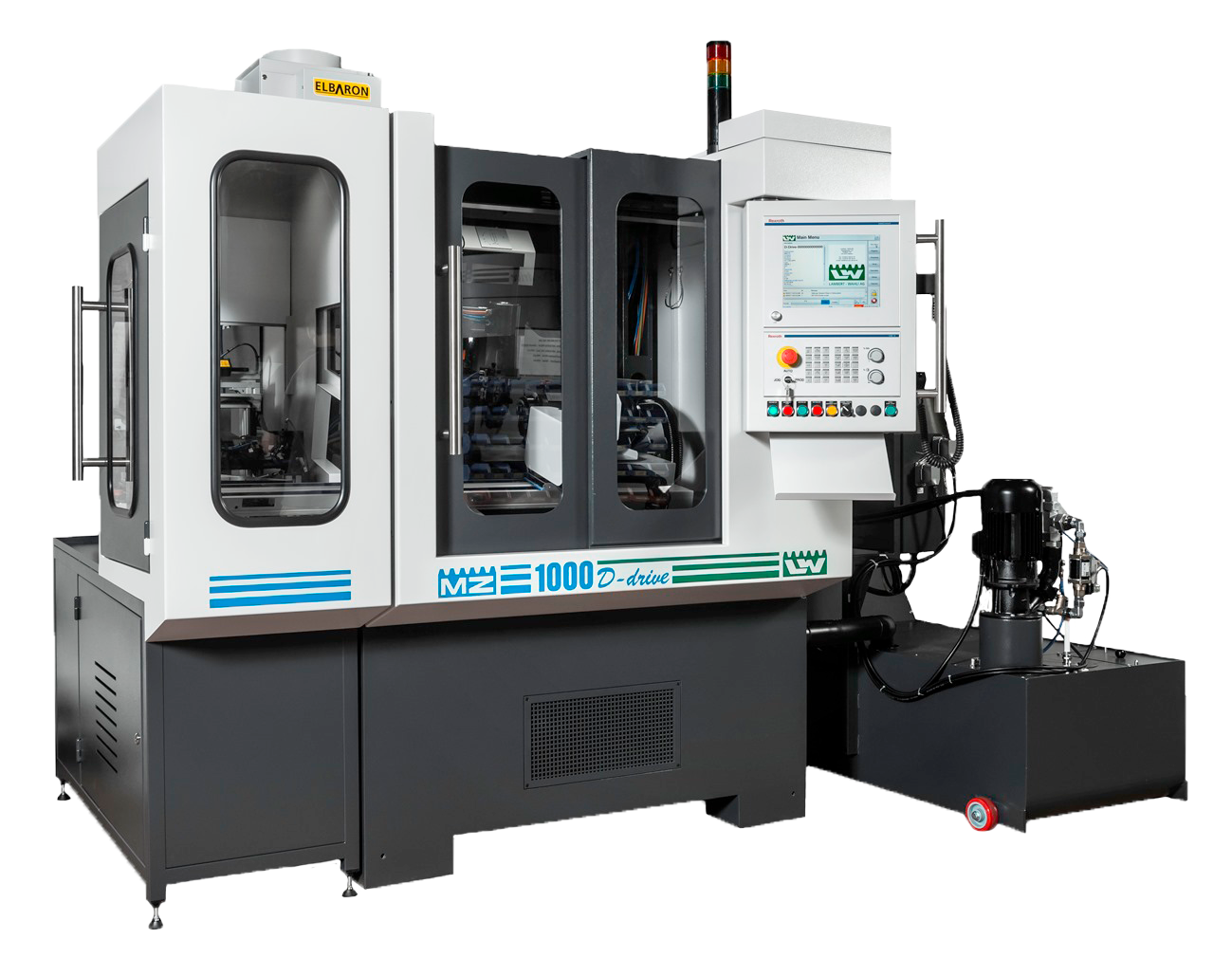

MZ 1000 D-Drive
CNC Gear Hobbing Machine
25 DP
Max Pitch Rating
15,000
RPM Hob Speed
CNC Axes
CNC Axes
High-speed (15,000 rpm) direct-drive hob head with CNC shifting.
Synchronous high-speed (12,000 rpm) direct-drive work and tailstock spindles.
Flexible dialogue programming:
One or two gears on a single workpiece.
Radial, axial, climb, and/or conventional hobbing on a single- or two-cut cycle.
Crowning (lead modification).
Burr-free hobbing using a single hob.
Deburring using two equal hobs.
Single- or multi-start worm milling for double worms with both right and left hand, and deburring at worm thread entry and/or exit.
Multi-start worm hobbing.
Worm skiving.
Miter gear (straight bevel) cutting by index milling or Conikron generating.
Cast iron base for dynamic stability.
Flexible automation systems.
Hydraulic deburring unit.
Bolstering your quality and productivity.
The MZ 1000 D-drive CNC gear hobbing machine from Monnier + Zahner offers fully capable hobbing of spur and helical gears, oval gears, worm wheels, bevel gears, and the milling or skiving of worms.
MZ 1000 D-Drive
Technical Specifications
Metric / Imperial
Max Pitch Rating
1.00 mn / 25.4 DP
Max Workpiece Diameter
100 mm / 3.937 in
Max Workpiece Diameter (auto-load)
40 mm / 1.575 in
Max Workpiece Length
100 mm / 3.937 in
Max Workpiece Length (auto-load)
100 mm / 3.937 in*
Cutter Head Radial Travel
89 mm / 3.504 in
Min. Radial Position of Cutter Head
1.00 mn / 25.4 DP
Max. Radial Position of Cutter Head
52 mm / 2.047 in
Max. Work Spindle Speed
5,000 rpm
Max. Spindle Speed
12,000 rpm
Max. Hob Diameter
32 mm / 1.260 in
Max. Cutter Width
60 mm / 2.362 in
Max. Cutter Shift
70 mm / 2.756 in
Width
2,620 mm / 102.36 in
Depth
2,133 mm / 83.98 in
Height
2,370 mm / 93.31 in
Weight
2,000 kg / 4,400 lb
Electrical Connection
220V, 3 phase, 60 Hz
